Biomedical Research

DOI: 10.4066/biomedicalresearch.29-18-1035

Abstract

A novel series of arylidiene, isoxazole, pyrazolines, and their derivatives 2-8 were synthesized by using estrone (3-hydroxyestran-17-one, 1) as starting material. Some of the synthesized compounds were screened as follicle-stimulating hormone (FSH) agents. The synthesized compounds were illustrated by elemental analysis and spectroscopic evidences.

Keywords

Estrone derivatives, Isoxazoles and pyrazolines, Follicle-stimulating hormone activities

Introduction

Heterocyclic compounds are well known to possess pharmacological activities. Some of these derivatives were reported as biological and pharmacological [1], antifungal [2,3], antiinflammatory [4,5], antiamebic [6], antimicrobial [7,8], and antiasthma [9] agents. In previous work we have reported that certain of substituted pyrazole and oxazole heterocycles represent class of compounds that play an important role in the medicinal chemistry. Previously we have reported the SARS-CoV 3C-like protease inhibitors [10], against different cancer cell lines [11-13], EGFR and VEGFR-2 kinase inhibitors [14] activities for different series of substituted pyrazole derivatives. On the other hand, the oxazole heterocyclic derivatives have effective pharmacological importance. For example, a large number of nitrogen atoms are interesting drug candidates including potential analgesic and anti-convulsant [15], androgenic anabolic activities [16,17]. In view of these observations and in continuation of our studies in heterocyclic chemistry [18-21], we screened some of synthesized of fused isoxazole and pyrazoline compounds with estrone ring as follicle-stimulating hormone (FSH) agents.

Materials and Methods

Chemistry

All melting points are uncorrected and were measured using an electro thermal capillary melting point apparatus. The IR spectra were recorded on a Shimadzu FT-IR 8101 PC infrared spectrophotometer. The 1H and ¹³C-NMR spectra were determined with bruker 600 mhz NMR spectrometer by using CDCl₃ as solvent. The chemical shifts are expressed on the δ (ppm) scale using TMS as the standard reference. Mass spectra were recorded on Finnigan SSQ operating at 70 ev. Elemental analysis determined on a Perkin Elmer 240 (microanalysis), Microanalysis Center, Cairo University, Cairo, Egypt.

Synthesis of 3-hydroxy-16-((aryl) methylene)- estra-1(10), 2, 4-trien-17-one (2a and 2b)

A solution of 1 (0.54 g, 20 mmol) and the corresponding aromatic aldehydes, namely, benzaldehyde or 4- pyridinecarbaldehyde (20 mmol) in a mixture of ethanol (50 ml) and aqueous potassium hydroxide (10 ml, 30%) was stirred over night at room temperature. The separated solid product was filtered off, washed with water and crystallized from ethanol to give compounds 2a and 2b respectively.

3-hydroxy-16-((phenyl) methylene) estra-1(10), 2, 4- trien-17-one (2a): Yield 98%, mp 258-260°C, (α)²⁵_D=+117 (c₁, MeOH). IR spectrum, v, cm^-1: 3341 (OH), 3060 and 3048 (CH, Ar), 2943 (CH, aliphatic), 1746 (C=O), 1644 (C=C). ¹H NMR spectrum, δ, ppm: 0.64-60 m (1H, H-8β), 0.92-0.90 s (3H, CH₃), 1.03-1.00 m (1H, H-11β), 1.12-1.10 m (1H, H-7α), 1.16-1.14 m (1H, H-12α), 1.26-1.24 m (1H, H-14α), 1.42-1.40 m (1H, H-15β), 1.59-1.55 m (1H, H-15α), 1.73-1.70 m (1H, H-7β), 2.04-2.00 m (1H, H-9α), 2.10-2.08 m (1H, H-11α), 2.45-2.40 m (1H, H-12β), 2.55-2.50 m (1H, H-6α), 2.65-2.60 m (1H, H-6β), 4.97 s (1H, OH, exchangeable with D₂O), 6.74 dd (1H, H-2), 6.67 d (1H, H-4), 6.71 s (1H, arylidene proton), 7.10 d (1H, H-1), 7.28-7.48 m (5H, Ar-H). ¹³C NMR spectrum, δ, ppm: 13.80, 21.55, 25.93, 26.42, 29.51, 36.53, 38.34, 43.94, 48.09, 50.48, 108.09, 112.84, 115.26, 125.80, 126.40, 126.50, 126.53, 132.89, 135.92, 138.11, 153.55, 164.88, 210.12 (25 C). MS (EI): m/z 358 (100%) (M⁺). Found, %: C 83.68; H 7.24. C₂₅H₂₆O₂ (358.47). Calculated, %: C 83.76; H 7.31.

3-hydroxy-16-((4-pyridyl) methylene) estra-1 (10), 2, 4- trien-17-one (2b): Yield 90%, mp 200-202°C, (α)²⁵_D =+101 (c1, MeOH). IR spectrum, v, cm^-1: 3340 (OH), 3062 and 3044 (CH, aromatic), 2943 (CH, aliphatic), 1743 (C=O), 1641 (C=C). ¹H NMR spectrum, δ, ppm: 0.61-0.58 m (1H, H-8 β), 0.91 s (3H, CH₃), 1.03-1.00 m (1H, H-11β), 1.11-1.08 m (1H, H-7α), 1.16-1.14 m (1H, H-12α), 1.27-1.25 m (1H, H-14α), 1.43-1.40 m (1H, H-15β), 1.62-1.59 m (1H, H-15α), 1.73-1.70 m (1H, H-7β), 2.03-2.00 m (1H, H-9α), 2.08-2.06 m (1H, H-11α), 2.46-2.43 m (1H, H-12β), 2.54-2.51 m (1H, H-6α), 2.66-2.64 m (1H, H-6β), 4.98 s (1H, OH, exchangeable with D₂O), 5.79 dd (1H, H-2), 6.69 d (1H, H-4), 6.72 s (1H, arylidene proton), 7.11 d (1H, H-1), 7.35-7.88 m (4H, Ar-H). ¹³C NMR spectrum, δ, ppm: 13.85, 21.73, 25.83, 26.44, 29.55, 36.55, 38.44, 43.99, 48.25, 50.62, 108.22, 112.83, 115.35, 124.22, 126.43, 132.33, 138.51, 147.17, 149.62, 153.64, 164.85, 210.34 (24 C). MS (EI): m/z 359 (100%) (M⁺). Found, %: C 80.10; H 6.94; N 3.82. C₂₄H₂₅NO₂ (359.46). Calculated, %: C 80.19; H 7.01; N 3.90.

Synthesis of 3-hydroxy-16-(phenyl-(aryl) methane) estra-1 (10), 2, 4-trien-17-one (3a and 3b)

Preparation of phenylmagnesium bromide: Weigh 6 mmol of magnesium turnings in one test tube and in another test tube mix 6 mmol of bromobenzene 1 ml of anhydrous diethyl ether. Transfer the content of the second tube to the first portion wise with sonication.

Addition of the grignard: In Erlenmeyer flask dissolve (4 mmol) of compound 2 in 20 ml of anhydrous diethyl ether and place in an ice-bath over a stirring motor. Stir the resulting solution slowly, and then use a Pasteur pipette to slowly transfer the Grignard reagent to the cold solution drop wise. Once the addition of the Grignard reagent is complete, remove the flask from the ice-bath and let it stir at room temperature for about 5-10 min (during this time you should begin to chill 5 ml of 5% H₂SO₄ for the next step of the experiment). To quench the reaction, slowly add 5 ml of chilled 5% H₂SO₄ (aq.) to the reaction flask (continue to stir, if possible). Transfer the reaction mixture to separatory funnel, leaving behind any undissolved solids then takes the ether layer then wash it with 3 ml of saturated aqueous sodium chloride. Collect the ether solution, dry it over anhydrous sodium sulfate, and evaporate to dryness and crystallized from methanol to give compounds 3a and 3b, respectively.

3-hydroxy-16-(bisphenyl-methane)-estra-1 (10), 2, 4- trien-17-one (3a): Yield 44%, mp 212-214°C, (α)²⁵_D=+ 107 (c1, MeOH). IR spectrum, v, cm^-1: 3344 (OH), 3065 and 3043 (CH, aromatic), 2944 (CH, aliphatic), 1735 (C=O), 1645 (C=C). 1H NMR spectrum, δ, ppm: 0.64-0.62 m (1H, H-8β), 0.92-0.90 s (3H, CH₃), 1.03-1.00 m (1H, H-11β), 1.13-1.10 m (¹H, H-7α), 1.17-1.15 m (1H, H-12α), 1.25-1.22 m (1H, H-14α), 1.40-1.38 m (1H, H-15β), 1.57-1.55 m (1H, H-15α), 1.75-1.72 m (1H, H-7β), 1.79-1.77 m (1H, H-16α), 2.03-2.00 m (1H, H-9α), 2.07-2.05 m (1H, H-11α), 2.32 s (1H, phenyl- CH-phenyl), 2.46-2.43 m (1H, H-12β), 2.56-2.54 m (1H, H-6α), 2.65-2.62 m (1H, H-6β), 4.98 s (1H, OH, exchangeable with D₂O), 5.78 dd (1H, H-2), 6.68 d (1H, H-4), 7.11 d (1H, H-1), 7.30-7.58 m (10H, Ar-H). ¹³C NMR spectrum, δ, ppm: 13.83, 21.47, 25.56, 26.45, 29.31, 36.63, 38.66, 43.94, 47.55, 48.47, 50.47, 58.13, 112.80, 115.34, 125.80, 126.40, 126.50, 126.55, 126.90, 128.50, 130.20, 132.89, 135.92, 138.14, 145.40, 153.89, 218.55 (31 C). MS (EI): m/z 436 (100%) (M⁺). Found, %: C 85.18; H 7.33. C₃₁H₃₂O₂ (436.58). Calculated, %C 85.28; H 7.39.

3-hydroxy-16-(phenyl-(4-pyridyl)-methane)-estra-1 (10), 2, 4- trien-17-one (3b): Yield 35%, m.p. 230-232°C, (α)²⁵_D=+156 (c1, MeOH). IR spectrum, v, cm^-1: 3340 (OH), 3062 and 3047 (CH, aromatic), 2947 (CH, aliphatic), 1732 (C=O), 1647 (C=C). ¹H NMR spectrum, δ, ppm: 0.62-0.60 m (1H, H-8β), 0.91 s (3H, CH₃), 1.03-1,00 m (1H, H-11β), 1.11-1.08 m (1H, H-7α), 1.17-1.14 m (1H, H-12α), 1.27-1.24 m (1H, H-14α), 1.41-1.38 m (1H, H-15β), 1.61-1.58 m (1H, H-15α), 1.71-1.68 m (1H, H-7β), 1.78-1.75 m (1H, H-16α), 2.05-2.02 m (1H, H-9α), 2.07-2.04 m (1H, H-11α), 2.32 s (1H, pyridyl-CHphenyl), 2.46-2.43 m (1H, H-12β), 2.54-2.50 m (1H, H-6α), 2.66-2.64 m (1H, H-6β), 4.98 s (1H, OH, exchangeable with D₂O), 5.79 dd (1H, H-2), 6.69 d (1H, H-4), 7.11 d (1H, H-1), 7.35-7.88 m (9H, Ar-H). ¹³C NMR spectrum, δ, ppm: 13.81, 21.79, 25.87, 26.45, 29.54, 36.55, 38.47, 43.96, 47.50, 48.28, 50.68, 58.19, 112.80, 115.32, 124.22, 125.88, 126.40, 126.50, 132.36, 135.90, 138.54, 147.17, 149.62, 153.62, 164.81, 218.50 (30 C). MS (EI): m/z 437 (70%) (M⁺). found, %: C 82.24; H 7.10; N 3.15. C₃₀H₃₁NO₂ (437.57). Calculated, %: C 82.35; H 7.14; N 3.20.

3-hydroxy-16-((aryl)-N-morpholinylmethane)-estra-1 (10), 2, 4-trien-17-one (4a and 4b): A mixture of compounds 2a and 2b (5 mmol) and morpholine (0.5 ml, 6 mmol) in dioxane (50 ml) was refluxed for 7 h. The reaction mixture was evaporated under reduced pressure to dryness, the obtained residue was dried and crystallized from benzene to give the corresponding products 4a and 4b, respectively.

3-hydroxy-16-((phenyl)-N-morpholinylmethane)-estra-1 (10), 2, 4-trien-17-one (4a): Yield 39%, m.p. 290-292°C, (α)²⁵_D=+136 (c1, MeOH). IR spectrum, v, cm^-1: 3346 (OH), 3067 and 3056 (CH, aromatic), 2950 (CH, aliphatic), 1733 (C=O), 1648 (C=C). ¹H NMR spectrum, δ, ppm: 0.64-0.62 m (1H, H-8β), 0.95 s (3H, CH₃), 1.04-1.00 m (1H, H-11β), 1.15-1.13 m (1H, H-7α), 1.18-1.17 m (1H, H-12α), 1.27-1.25 m (1H, H-14α), 1.44-1.40 m (1H, H-15β), 1.62-1.60 m (1H, H-15α), 1.72-1.70 m (1H, H-7β), 1.84-1.82 m (1H, H-16α), 2.03-2.00 m (1H, H-9α), 2.10-2.08 m (1H, H-11α), 2.46-2.44 m (1H, H-12β), 2.56-2.53 m (1H, H-6α), 2.66-2.64 m (1H, H-6β), 2.85-2.81 m (4H, 2CH₂), 3.43-3.40 s (1H, NCH), 3.67-3.65 m (4H, 2CH₂), 4.97 s (1H, OH, exchangeable with D₂O), 5.77 dd (1H, H-2), 6.67 d (1H, H-4), 7.10 d (1H, H-1), 7.28-7.48 (5H, Ar-H). ¹³C NMR spectrum, δ, ppm: 13.84, 21.66, 25.67, 26.42, 29.34, 36.53, 38.67, 43.94, 46.75, 48.09, 46.75, 48.09, 50.48, 52.85, 68.11, 112.54, 115.78, 125.82, 126.42, 126.56, 132.89, 135.92, 138.44, 153.46, 213.43 (29 C). MS (EI): m/z 445 (100%) (M⁺). Found, %: C 78.05; H 7.87; N 3.10. C₂₉H₃₅NO₃ (445.59). Calculated, %: C 78.17; H 7.92; N 3.14.

3-hydroxy-16-((4-pyridyl)-N-morpholinylmethane)-estra-1 (10), 2, 4-trien-17-one (4b): Yield 34%, m.p. 312-314°C, (α)²⁵_D=+166 (c1, MeOH). IR spectrum, v, cm^-1: 3347 (OH), 3068 and 3046 (CH, aromatic), 2945 (CH, aliphatic), 1742 (C=O), 1643 (C=C). ¹H NMR spectrum, δ, ppm: 0.66-0.64 m (1H, H-8β), 0.95 s (3H, CH₃), 1.05-1.03 m (1H, H-11β), 1.11-1.10 m (1H, H-7α), 1.17-1.15 (1H, H-12α), 1.29-1.25 m (1H, H-14α), 1.44-1.42 m (1H, H-15β), 1.66-1.64 m (1H, H-15α), 1.77-1.75 m (1H, H-7β), 1.85-1.83 m (1H, H-16α), 2.05-2.02 m (1H, H-9α), 2.09-2.07 m (1H, H-11α), 2.48-2.46 m (1H, H-12β), 2.58-2.56 m (1H, H-6α), 2.69-2.67 m (1H, H-6β), 2.86-2.84 m (4H, 2CH₂), 3.44 s (1H, NCH), 3.65-3.63 m (4H, 2CH₂), 4.96 s (1H, OH, exchangeable with D₂O), 5.80 dd (1H, H-2), 6.71 d (1H, H-4), 7.12 d (1H, H-1), 7.33-7.83 m (4H, Ar-H). ¹³C NMR spectrum, δ, ppm: 13.88, 21.63, 25.45, 26.89, 29.67, 36.00, 38.45, 43.08, 46.79, 48.25, 50.65, 52.89, 68.22, 108.72, 112.58, 115.68, 124.48,126.34, 132.54, 138.45, 147.76, 149.55, 153.53, 210.37 (28 C). MS (EI): m/z 446 (81%) (M⁺). Found, %: C 75.22; H 7.60; N 6.20. C₂₈H₃₄N₂O₃ (446.58). Calculated, %: C 75.31; H 7.67; N 6.27.

Synthesis of 5’-(aryl)-estra-1 (10), 2, 4-trien-(17, 16-c) isoxazole-3-ol (5a and 5b)

A mixture of arylmethylene derivatives 2a and 2b (5 mmol) and hydroxylamine hydrochloride (6 mmol) in sodium ethoxide (46 mg sodium metal in 25 ml absolute ethanol) was refluxed for 7 h. The reaction mixture was evaporated under reduced pressure, the obtained solid was washed with 10% HCl, filtered off, dried and crystallized from methyl acetate to give isoxazole derivatives 5a and 5b, respectively.

5’-(phenyl)-estra-1 (10), 2, 4-trien-(17, 16-c) isoxazole-3-ol (5a): Yield 57%, m.p. 210-212°C, (α)²⁵_D=+145 (c1, MeOH). IR spectrum, v, cm^-1: 3347 (OH), 3065 and 3055 (CH, aromatic), 2947 (CH, aliphatic), 1614 (C=C), 1600 (C=N). ¹H NMR spectrum, δ, ppm: 0.65-0.62 m (1H, H-8 β), 0.92 s (3H, CH₃), 1.04-1.00 m (1H, H-11β), 1.12-1.10 m (1H, H-7α), 1.17-1.15 m (1H, H-12α), 1.26-1.24 m (1H, H-14α), 1.42-1.40 m (1H, H-15β), 1.61-1.58 m (1H, H-15α), 1.73-1.70 m (1H, H-7β), 1.86-1.83 m (1H, H-16α), 2.04-1.99 m (1H, H-9α), 2.11-2.09 m (1H, H-11α), 2.45-2.42 m (1H, H-12β), 2.56-2.53 m (1H, H-6α), 2.65-2.61 m (1H, H-6β), 4.77 s (1H, isoxazole-5ʼ), 4.80 s (1H, OH, exchangeable with D₂O), 5.77 dd (1H, H-2), 6.68 d (1H, H-4), 7.10 d (1H, H-1), 7.28-7.41 m (5H, Ar-H). ¹³C NMR spectrum, δ, ppm: 13.90, 21.85, 26.21, 26.67, 29.89, 36.78, 38.57, 44.44, 48.69, 50.88, 56.78, 108.46, 112.90, 115.65, 126.10, 126.78, 126.80, 127.10, 136.10, 133.39, 138.46, 150.67, 153.89 (25 C). MS (EI): m/z 373 (65%) (M⁺). Found, %: C 80.32; H 7.20; N 3.70. C₂₅H₂₇NO₂ (373.48). Calculated, %: C 80.40; H 7.29; N 3.75.

5’-(4-pyridyl)-estra-1 (10), 2, 4-trien-(17, 16-c) isoxazole-3- ol (5b): Yield 47%, mp 249-251°C, (α)²⁵_D=+145 (c1, MeOH). IR spectrum, v, cm^-1: 3348 (OH), 3067 and 3046 (CH, aromatic), 2945 (CH, aliphatic), 1614 (C=C), 1608 (C=N). ¹H NMR spectrum, δ, ppm: 0.63-0.60 m (1H, H-8β), 0.93 s (3H, CH₃), 1.06-1.04 m (1H, H-11β), 1.14-1.11 m (1H, H-7α), 1.15-1.13 m (1H, H-12α), 1.27-1.24 m (1H, H-14α), 1.43-1.40 m (1H, H-15β), 1.62-1.60 m (1H, H-15α), 1.74-1.71 m (1H, H-7β), 1.87-1.84 m (1H, H-16α), 2.02-2.00 m (1H, H-9α), 2.08-2.05 m (1H, H-11α), 2.48-2.45 m (1H, H-12β), 2.56-2.53 m (1H, H-6α), 2.67-2.65 m (1H, H-6β), 4.79 s (1H, isoxazole-5ʼ), 4.99 s (1H, OH, exchangeable with D₂O), 5.78 dd (1H, H-2), 6.67 d (1H, H-4), 7.14 d (1H, H-1), 7.31-7.81 m (4H, Ar-H). ¹³C NMR spectrum, δ, ppm: 13.67, 21.65, 25.76, 26.54, 29.76, 36.67, 38.58, 43.67, 48.59, 50.98, 56.89, 108.45, 112.43, 115.54, 124.45, 126.54, 132.57, 138.43, 147.16, 149.65, 150.69, 153.65 (24 C). MS (EI): m/z 374 (91%) (M⁺). Found, %: C 76.90; H 6.90; N 7.40. C₂₄H₂₆N₂O₂ (374.47). Calculated, %: C 76.98; H 7.00; N 7.48.

Synthesis of (1H)-5’-(aryl)-estra-1 (10), 2, 4-trien-(17, 16-c) pyrazoline-3-ol (6a and 6b)

A mixture of 2a and 2d (4 mmol) and hydrazine hydrate (16 mmol) in dioxane (25 ml) was refluxed for 5 h. The solvent was evaporated under reduced pressure, the residue formed was solidified with water, filtered off, washed with water, dried and crystallized from methanol to give the corresponding pyrazoline derivatives 6a and 6b, respectively.

(1’H)-5’-(Phenyl)-estra-1(10), 2, 4-trien-(17, 16-c) pyrazoline-3-ol (6a): Yield 66%, mp 278-280°C, (α)²⁵_D=+137 (c1, MeOH). IR spectrum, v, cm^-1: 3347 (OH), 3285 (NH), 3068 and 3055 (CH, aromatic), 2947 (CH, aliphatic), 1622 (C=C), 1614 (C=N). ¹H NMR spectrum, δ, ppm: 0.67-0.64 m (1H, H-8β), 0.93 s (3H, CH₃), 1.05-1.03 m (1H, H-11β), 1.12-1.10 (1H, H-7α), 1.18-1.15 m (1H, H-12α), 1.28-1.15 m (1H, H-14α), 1.45-1.42 m (1H, H-15β), 1.61-1.58 m (1H, H-15α), 1.73-1.70 m (1H, H-7β), 1.86-1.83 m (1H, H-16α), 2.05-2.01 m (1H, H-9α), 2.12-2.10 m (1H, H-11α), 2.44-2.40 m (1H, H-12β), 2.57-2.54 m (1H, H-6α), 2.65-2.61 m (1H, H-6β), 3.81 s (1H, pyrazoline-5`), 4.80 s (1H, OH, exchangeable with D2O), 5.77 dd (1H, H-2), 6.68 d (1H, H-4), 7.10 d (1H, H-1), 7.28-7.41 m (5H, Ar-H), 9.85 bs (1H, NH, exchangeable with D₂O). ¹³C NMR spectrum, δ, ppm: 13.91, 22.22, 26.27, 26.88, 28.24, 30.12, 36.90, 39.00, 44.64, 49.00, 51.09, 64.61, 113.10, 115.77, 126.18, 126.67, 127.11, 127.23, 133.67, 136.10, 138.86, 154.19, 163.45 (25 C). MS (EI): m/z 372 (79%) (M⁺). Found, %: C 80.70; H 7.52; N 7.45. C₂₅H₂₈N₂O (372.50). Calculated, %: C 80.61; H 7.58; N 7.52.

(1’H)-5’-(4-pyridyl)-estra-1(10), 2, 4-trien-(17,16-c) pyrazoline-3-ol (6b): Yield 56%, mp 250-252°C, (α)²⁵_D=+140 (c1, MeOH). IR spectrum, v, cm^-1: 3348 (OH), 3288 (NH), 3068 and 3057 (CH, aromatic), 2946 (CH, aliphatic), 1624 (C=C), 1616 (C=N). ¹H NMR spectrum, δ, ppm: 0.66-0.64 m (1H, H-8β), 0.95 s (3H, CH₃), 1.03-1.00 m (1H, H-11β), 1.14-1.11 (1H, H-7α), 1.18-1.16 m (1H, H-12α), 1.27-1.25 m (1H, H-14α), 1.44-1.42 m (1H, H-15β), 1.62-1.60 m (1H, H-15α), 1.75-1.72 m (1H, H-7β), 1.89-1.87 m (1H, H-16α), 2.02-2.00 m (1H, H-9α), 2.08-2.06 m (1H, H-11α), 2.48-2.45 m (1H, H-12β), 2.56-2.53 m (1H, H-6α), 2.67-2.65 m (1H, H-6β), 3.81 s (1H, pyrazoline-5`), 4.91 s (1H, OH, exchangeable with D₂O), 5.78 dd (1H, H-2), 6.67 d (1H, H-4), 7.14 d (1H, H-1), 7.34-7.79 m (4H, Ar-H), 9.71 bs (1H, NH, exchangeable with D2O). ¹³C NMR spectrum, δ, ppm: 13.91, 21.61, 25.71, 26.54, 28.24, 29.16, 36.17, 38.51, 43.61, 48.51, 50.91, 56.89, 64.61, 112.43, 115.54, 126.14, 124.42, 132.51, 147.13, 149.61, 153.61, 163.45 (24 C). MS (EI): m/z 373 (91%) (M⁺). Found, %: C 77.10; H 7.20; N 11.16. C₂₄H₂₇N₃O (373.50). Calculated, %: C 77.18; H 7.29; N 11.25.

Synthesis of 1’-(N-morpholinomethyl)-1H-5’-(aryl)-estra-1 (10), 2, 4-trien-(17, 16-c) pyrazoline-3-ol (7a, and 7b)

A mixture of 6a and 6b (1 mmol), morpholine (0.1 g, 1 mmol) and paraformaldehyde (0.2 g) in absolute ethanol (30 ml) was refluxed for 2 h. The reaction mixture was evaporated under reduced pressure, the obtained residue was washed with ether, dried, and crystallized from methanol to give Nmorpholinopyrazoline derivatives 7a and 7b, respectively.

1’-(N-morpholinomethyl)-1H-5’-(phenyl)-estra-1 (10), 2, 4- trien-(17, 16-c) pyrazoline-3-ol (7a): Yield 87%, mp 234-236°C, (α)²⁵_D=+156 (c 1, MeOH). IR spectrum, v, cm^-1: 3340 (OH), 3068 and 3059 (CH, aromatic), 2956 (CH, aliphatic), 1628 (C=C), 1617 (C=N). ¹H NMR spectrum, δ, ppm: 0.68-0.68 m (1H, H-8β), 0.96 s (3H, CH₃), 1.07-1.05 m (1H, H-11β), 1.14-1.12 m (1H, H-7α), 1.18-1.15 m (1H, H-12α), 1.28-1.26 m (1H, H-14α), 1.45-1.42 m (1H, H-15β), 1.61-1.59 m (1H, H-15α), 1.74-1.70 m (1H, H-7β), 1.87-1.84 m (1H, H-16α), 2.06-2.02 m (1H, H-9α), 2.14-2.10 m (1H, H-11α), 2.34 s (2H, NCH₂N), 2.47-2.45 m (1H, H-12β), 2.59-2.56 m (1H, H-6α), 2.66-2.64 m (1H, H-6β), 2.85-2.82 m (4H, 2CH₂), 3.67-3.65 m (4H, 2CH₂), 3.86 s (1H, pyrazoline-5`), 4.87 s (1H, OH, exchangeable with D₂O), 5.78 dd (1H, H-2), 6.69 d (1H, H-4), 7.10 d (1H, H-1), 7.27-7.47 m (5H, Ar-H). ¹³C NMR spectrum, δ, ppm: 13.65, 22.57, 26.37, 26.85, 27.34, 28.89, 30.67, 36.93, 39.56, 44.34, 46.56, 49.67, 51.19, 64.32, 66.58, 68.17, 113.15, 115.37, 126.10, 126.60, 127.56, 133.37, 136.34, 138.84, 154.49, 163.57 (30 C). MS (EI): m/z 471 (59%) (M⁺). Found, %: C 76.28; H 7.82; N 8.84. C₃₀H₃₇N₃O₂ (471.63). Calculated, %: C 76.40; H 7.91; N 8.91.

1’-(N-morpholinomethyl)-1H-5’-(4-pyridyl)-estra-1 (10), 2, 4-trien-(17, 16-c) pyrazoline-3-ol (7b): Yield 77%, mp 288-290°C, (α)²⁵_D=+131 (c1, MeOH). IR spectrum, v, cm^-1: 3348 (OH), 3077 and 3050 (CH, aromatic), 2949 (CH, aliphatic), 1628 (C=C), 1617 (C=N). ¹H NMR spectrum, δ, ppm: 0.64-0.61 m (1H, H-8β), 0.95 s (3H, CH₃), 1.03-1.00 m (1H, H-11β), 1.14-1.12 m (1H, H-7α), 1.18-1.16 m (1H, H-12α), 1.27-1.24 m (1H, H-14α), 1.44-1.41 m (1H, H-15β), 1.62-1.60 m (1H, H-15α), 1.75-1.72 m (1H, H-7β), 1.89-1.86 m (1H, H-16α), 2.02-1.99 m (1H, H-9α), 2.08-2.05 m (1H, H-11α), 2.34 s (2H, NCH₂N), 2.48-2.45 m (1H, H-12β), 2.56-2.54 m (1H, H-6α), 2.67-2.65 m (1H, H-6β), 2.85-2.81 m (4H, CH₂), 3.67-3.65 m (4H, 2CH₂), 3.81 s (1H, pyrazoline-5`), 4.91 s (1H, OH, exchangeable with D₂O), 5.78 dd (1H, H-2), 6.67 d (1H, H-4), 7.14 d (1H, H-1), 7.34-7.79 m (4H, Ar-H). ¹³C NMR spectrum, δ, ppm: 13.90, 21.78, 25.67, 26.54, 28.54, 29.56, 36.46, 38.65, 43.67, 46.90, 48.43, 50.35, 56.67, 64.45, 66.89, 68.80, 112.57, 115.68, 124.62, 126.17, 138.69, 147.17, 149.69, 153.37, 163.58 (29 C). MS (EI): m/z 472 (100%) (M⁺). Found, %: C 73.58; H 7.60; N 11.78. C₂₉H₃₆N₄O₂ (472.60). Calculated, %: C 73.70; H 7.68; N 11.85.

Synthesis of 1’-(N-thiophenol methano)-1H-5’-(aryl)- estra-1 (10), 2, 4-trien (17, 16-c) pyrazoline-3-ol (8a and 8b)

A mixture of 5a and 5b (1 mmol), thiophene (0.1 g, 1 mmol), and paraformaldehyde (0.2 g) in absolute ethanol (30 ml) was refluxed for 2 h. The reaction mixture was evaporated under reduced pressure, dried, and crystallized to give 7a and 7b, respectively.

1’-(N-thiophenol methano)-1H-5’-(phenyl)-estra-1 (10), 2, 4-trien-(17, 16-c0 pyrazoline-3-ol (8a): Yield 81%, mp 270-272°C, (α)²⁵_D=+105 (c1, MeOH). IR spectrum, v, cm^-1: 3346 (OH), 3077 and 3067 (CH, aromatic), 2957 (CH, aliphatic), 1627 (C=C), 1618 (C=N). ¹H NMR spectrum, δ, ppm: 0.66-0.64 m (1H, H-8β), 0.94 s (3H, CH₃), 1.05-1.03 m (1H, H-11β), 1.15-1.12 m (1H, H-7α), 1.20-1.18 m (1H, H-12α), 1.30-1.28 m (1H, H-14α), 1.47-1.45 m (1H, H-15β), 1.66-1.63 m (1H, H-15α), 1.76-1.72 m (1H, H-7β), 1.86-184 m (1H, H-16α), 2.11-2.09 m (1H, H-9α), 2.17-2.14 m (1H, H-11α), 2.47-2.45 m (1H, H-12β), 2.61-2.59 m (1H, H-6α), 2.68-2.64 m (1H, H-6β), 3.88 s (1H, pyrazoline-5’), 3.88 s (2H, NCH2S), 4.88 s (1H, OH, exchangeable with D₂O), 5.79 dd (1H, H-2), 6.68 d (1H, H-4), 7.11 d (1H, H-1), 7.27-7.88 m (10H, Ar-H). ¹³C NMR spectrum, δ, ppm: 13.75, 22.58, 26.56, 26.78, 28.89, 30.67, 36.93, 39.56, 44.79, 49.11, 49.70, 51.68, 64.37, 113.45, 115.37, 125.05, 126.10, 126.60, 126.67, 127.45, 127.56, 128.82, 133.37, 135.12, 136.14, 138.69, 154.67, 163.58 (32 C). MS (EI): m/z 494 (100%) (M⁺). Found, %: C 77.60; H 6.86; N 5.60; S 6.40. C₃₂H₃₄N₂OS (494.67). Calculated, %: C 77.69; H 6.93; N 5.66; S 6.48.

1’-(N-thiophenol methanol)-1H-5’-(4-pyridyl)-estra-1 (10), 2, 4-trien (17, 16-c) pyrazoline-3-ol (8b): Yield 80%, mp 222-224°C, (α)²⁵_D=+100 (c1, MeOH). IR spectrum, v, cm^-1: 3340 (OH), 3070 and 3050 (CH, aromatic), 2940 (CH, aliphatic), 1620 (C=C), 1610 (C=N). ¹H NMR spectrum, δ, ppm: 0.65-0.63 m (1H, H-8β), 0.94 s (3H, CH₃), 1.03-1.00 m (1H, H-11β), 1.16-1.13 m (1H, H-7α), 1.17-1.14 m (1H, H-12α), 1.26-1.24 m (1H, H-14α), 1.46-1.43 m (1H, H-15β), 1.64-1.63 m (1H, H-15α), 1.74-1.72 m (1H, H-7β), 1.87-1.85 m (1H, H-16α), 2.00-1.98 m (1H, H-9α), 2.07-2.05 m (1H, H-11α), 2.49-2.46 m (1H, H-12β), 2.58-2.56 m (1H, H-6α), 2.68-2.65 m (1H, H-6β), 3.80 s (1H, pyrazoline-5’), 3.88 s (2H, NCH₂S), 4.92 s (1H, OH, exchangeable with D₂O), 5.76 dd (1H, H-2), 6.68 d (1H, H-4), 7.12 d (1H, H-1), 7.34-7.90 m (9H, Ar-H). ¹³C NMR spectrum, δ, ppm: 13.95, 21.72, 25.60, 26.50, 28.53, 29.50, 36.40, 38.60, 43.60, 48.40, 49.11, 50.31, 56.67, 64.46, 112.57, 115.68, 124.69, 125.05, 126.67, 128.82, 132.90, 135.12, 138.69, 147.10, 149.67, 153.78, 163.54 (31 C). MS (EI): m/z 495 (100%) (M⁺). Found, %: C 75.02; H 6.62; N 8.40; S 6.40. C₃₁H₃₃N₃OS (495.67). Calculated, %: C, 75.12; H, 6.71; N, 8.48; S, 6.47.

Pharmacological screening

In vitro (3H) thymidine uptake in cultured mouse ovaries: Using the adopted method [22].

Ovarian weight in HCG-primed rats: Using the adopted method [22]: Receptor binding assay for FSH: Membrane preparations from bovine testes are used according to the methods of Cheng [23] and Andersen [24], and follow up the adopted method [22].

Measurement of drug levels in plasma and in different organ samples: Drug levels in plasma and in different organ samples were measured by liquid chromatography as previously described [25]. And follow up the adopted method [26].

Results and Discussion

Chemistry

The arylidene derivatives were prepared and subjected to both Grignard addition using phenyl magnesium bromide and 1, 4 Micheal addition using morpholine. Also the isoxazole and the pyrazoline derivative confined to ring D of estrone were prepared from these arylidene. The pyrozoline derivatives were converted to their Mannich derivatives using morpholine and thiophene. All the synthesized compounds were screened as follicle-stimulating hormone (FSH) agents. Follicle-stimulating hormone increases dose-dependent the amount of (3H) thymidine uptake by cultured mouse ovaries. In vivo method the relative potency to standard reference drug pergonal was calculated. Receptor binding assay for FSH calculate the specific binding percentage of each of the tested compounds to its Receptor. Also, in vivo pharmacokinetic and pharmacodynamic profiles of the some newly synthesized agents were evaluated in at the end of experiment in (PM).

Treating of estrone (3-hydroxyestran-17-one, 1) with benzaldehyde and 4-pyridinecarbaldehyde afforded the corresponding arylidene derivatives 2a and 2b, respectively, which were treated with Grignard reagent (phenyl magnesium bromide) to afford the corresponding 1, 4 addition products 3a and 3b, respectively. Also, arylidene derivatives 2a and 2b were reacted with hydroxyl amine hydrochloride or morpholine to afford the corresponding 1, 4 Michael addition products 4a and 4b, and isoxazoles 5a and 5b, respectively (Scheme 1).

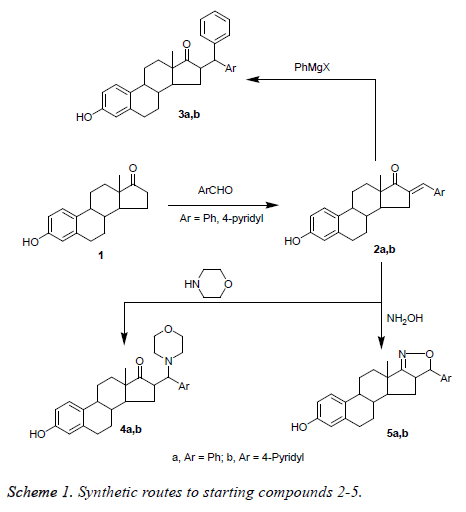

Scheme 1. Synthetic routes to starting compounds 2-5.

Condensation of 2a and 2b with hydrazine hydrate afforded the corresponding pyrazoline derivatives 6a and 6b, respectively. The latter compounds 6a and 6b were treated with morpholine and paraformaldehyde under the Mannich reaction afforded the corresponding Mannich reaction products 7a and 7b, respectively. Finally, treating of 6a and 6b with thiophenol and paraformaldehyde under the Mannich reaction afforded the corresponding Mannich reaction products 8a and 8b, respectively (Scheme 2).

Scheme 2. Synthetic routes to starting compounds 6-8.

Pharmacological screening

In vitro (³H) thymidine uptake in cultured mouse ovaries [27,28]: Follicle-stimulating hormone increases dosedependent the amount of (³H) thymidine uptake by cultured mouse ovaries. This in vitro bioassay for FSH uses a tissue specific proliferation response. In this in vitro preliminary screening method, the IC90 (μM) or the doses of the tested compounds that cause 90% increases in the amount of (³H) thymidine uptake by cultured mouse ovaries were calculated and tabulated in Table 1.

Table 1. IC₉₀ (μM) of the tested compounds for in vitro (³H) thymidine uptake in cultured mouse ovaries model.

Ovarian weight in HCG-primed rats: Follicle-stimulating hormone (FSH) increases the weight of ovaries in immature rats by inducing follicular maturation [29]. This effect is greatly enhanced by simultaneous administration of a constant dose of human chorionic gonadotropin (HCG) for additional luteinization allowing the detection of low amounts of FSH. In this in vivo method the relative potency to standard reference drug pergonal were calculated and given in Table 2.

Table 2. Relative potency of the tested compounds in ovarian weight in HCG-primed rats model.

Values are standard error of mean (± S.E.M), n=6 in each group; Statistical analysis by one way Analysis of Variance (ANOVA) followed by Dunnet test using Graphpad Instat software (P<0.05).

Receptor binding assay for FSH: Significant differences between biological activity and receptor binding activity of FSH preparations have been found by Marana et al. [30], Zaid et al. [31], Foulds et al. [26], and Burgon et al. [32]. This is attributed to the assay principle of measuring binding activity, but not subsequent intracellular signaling. Several receptors binding assay procedures have been described, e.g. Cheng [23], Andersen [24] using bovine testes and Reichert [22,25] was using rat testes tubule tissue. So this method calculate the specific binding percentage of each of the tested compounds to its receptor and given in Table 3.

Table 3. Specific binding of the tested compounds for receptor binding assay for FSH model.

Pharmacokinetics and pharmacodynamics profiles of the tested agents: Ovarian drug conc. in female Sprague-Dawley rats (ovarian weight in HCG-primed rats) nM and plasma drug conc. in female Sprague-Dawley rats (ovarian weight in HCGprimed rats) nM were measured and given in Table 4 indicating good pharmacokinetics and pharmacodynamics properties of the tested agents.

Table 4. In vivo pharmacokinetic and pharmacodynamic profiles of the some newly synthesized agents were evaluated in at the end of experiment in (PM).

Structure activity relationship (SAR)

• 16-arylidene or benzylidene increases the activity, where adding more electronegative nitrogen atom increases the FSH activities.

• Building 5 member ring system increases the activity, where pyrazoline provide more FSH activities than isoxazole.

• The substitution on the NH of pyrazoline increases the FSH activities.

• Sulfur atom increases the activity more than its CH₂ bioisoster.

Conclusion

In our study was to synthesize and screened as folliclestimulating hormone (FSH) agents of novel series of arylidiene, isoxazole, pyrazolines, and their derivatives 2-8 from estrone (3-hydroxyestran-17-one, 1) as starting material. The arylidene derivatives were prepared and subjected to both Grignard addition using phenyl magnesium bromide and 1, 4 Micheal addition using morpholine. Also the isoxazole and the pyrazoline derivative confined to ring D of estrone were prepared from these arylidene. The pyrozoline derivatives were converted to their Mannich derivatives by using morpholine and thiophene. All the synthesized compounds were screened as follicle-stimulating hormone (FSH) agents.
