Biomedical Research

Abstract

The measurement of the electrical activity of the heart can be done with electrocardiogram (ECG). Automatic arrhythmia-diagnosis systems which results in high accuracy rates for inside and outside patient are still an important area of research. The accuracy of such system depends on accuracy of the classification system. All this classification system required qualitative features for classification. This paper proposed a unique method of profiling of statistical features for selection of qualitative features through ECG waveform. The proposed approach for selection of qualitative features can classify and differentiate abnormal heartbeats and normal (NORM). Left bundle branch block (LBBB), right bundle branch block (RBBB), ventricular premature contractions (VPC) and atrial premature contractions (APC) comes under abnormal heart beats.

Keywords

ECG waveform, Profiling, Memory elements, Counters.

Introduction

The electrocardiogram (ECG) is graphical representation of the electrical activity of the heart. PQRS complex waveform detection is necessary to determine the heart rate and arrhythmias types such as Tachycardia, Bradycardia and Heart Rate variation. It is also necessary for further processing of the ECG signal in order to detect abnormal beats [1].

After the beat detection, effective beat classification is performed for arrhythmia analysis of normal and abnormal ECG waveform. Maximum likelihood, artificial neural networks and support vector machines have been introduced so far for the ECG beat classification [2,3]. The paper is prepared as follows. In Section II we discuss work related to QRS classification systems. We discuss the working of our signal processing in Section III; qualitative feature selection techniques in Section IV. We discussed our simulation results in Section V. And we conclude our paper in Section VI.

Prior Work

For patient diagnosis QRS complex detection and classification is very important so that one can identify normal and abnormal heart beat. Previous work has been done in the detection of waveform, for example Senhadji et al. who compared the performance of wavelet transform (Daubechies, Spline and Morlet) to identify and explain isolated cardiac beats [4]. Sahambi et al. used a derivative of first order for the classification of the ECG waveforms [5]. The algorithms based on spectral has been developed by author [6,7] or wavelet features [8,9], amplitude activity [10,11] and spatial context [12,13], ECG signal characterization [14-19].

The authors of this paper worked on Z eighty processor for detection of QRS in real time [14]. Ning et al. proposed a technique to determine a exact peak based on largest magnitude within a fixed time window [20]. Jain et al. Proposed, the ECG Feature Extractor provided by LabVIEW Biomedical toolkit detects QRS waves [21]. Yazdani et al. proposed that for QRS detection with peaks at R-waves and valleys before and after, Q and S-points. QRS-onset and QRSoffset are calculated [22]. Nallathambi et al. proposed, the preprocessed ECG signal is converted into a train of pulses using the IF sampler [23].

Beat classification can be required for analysis of arrhythmia type. Methods such as recognition of pattern, likelihood, artificial neural network and vector machines have been extensive used for ECG beat classifications [24-26]. New information can be mapped by continues training using the method of learning the machine [27]. De Chazal et al. classified the beats by analyzing the RR intervals and ECG morphology features along with heart beat segmentation information [28].

Christov et al. proposed a method of classification by measuring the ECG features such as time and frequency [29]. Clinical cardiac signal can be verified using the method proposed in [30] is a patient dependent classifier. Haseena et al. [31] use a combination of fuzzy clustering and artificial neural networks to differentiate between different types of beat class.

Signal Processing of ECG

Pre processing

The presence of unwanted signal causes a big problem in the identification of ECG signals and lots of works have been done in the field to remove these noise signals. By conducting a mathematical method based on varying window length as according to the distance from the adjacent R_peak which are assumed to be high frequency noise (power line interference, electromyography noise) is removed with the help of the varying window mean procedure form by the universal time constant equation and the low frequency noise (base-line wandering, motion artifact) removal task is done with the help of Fast Fourier Transform [32].

QRS detection and extraction of features

The QRS complex is the important waveform in the electrocardiogram (ECG). QRS detection provides the basic for all ECG analysis algorithms which has been done automatically. We detected the QRS complex and QRS features (‘‘H-QR”, ‘‘H-RS”, ‘‘QRS-duration”, ‘‘Slope-R”, ‘‘Slope-RS” and ‘‘Ratio-RR”) by using Lab View as proposed in paper [33].

Qualitative Features Selection Techniques

Profiling approach using counters

The basic concept in ECG profiling is based on the repetitionbased pattern detection schemes, to derive a normal and abnormal (LBBB, RBBB, VPC and APC) ECG pattern for an individual. Our proposed method for profiling is based on repetitions of pattern as shown in Figure 1. The structure of these repeated parameters is specific (different class of arrhythmia) and depend to the features of each behavior. Therefore the proposed system is well synchronized to particular class so that the output will be a profiling curve for specific application. In our system, the data information chosen is morphology of for QRS complex and the ratio of the present and the past R peak points.

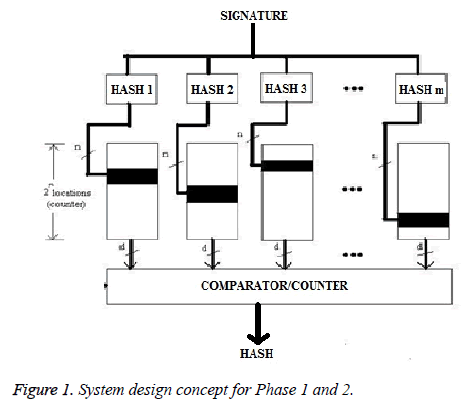

Figure 1: System design concept for Phase 1 and 2.

Phase 1: In Phase 1, once the QRS complex and features, different statistical information that is in each QRS waveform (‘‘H-QR”,‘‘H-RS”, ‘‘QRS-dur”, ‘‘Slope-R”, ‘‘Slope-RS” and ‘‘Ratio-RR”) has to be determined for the particular class of arrhythmia than we plotted the profile curve by using the feature (QRS-duration, information in form of number of samples). Depending on the information of the counters, a hyperbolic profiling curve would be obtained, where abnormality should be found on the end of the curve [24]. Abnormal ECG beats of the ECG profiling curve will be seen where humps exist on the tail of the bell-shaped curve. If no anomalies lie on the tail(s) than we declare that ECG waveform belong to normal class and on the other hand if anomalies found on the end of the curve than we declare that the waveform is having an abnormal ECG beats as shown in Figure 2 and then now onwards remaining features act as a signature for phase 1.

Figure 2: Distribution of counter contents for MIT-BIH arrhythmia database readings of phase 1.

Phase 2: In Phase 2, m independent hash values for phase 2 are used from the phase 1 signature. These hash values is used as memory indices in phase 2. Hash functions were designed similar to phase 1. The array i has been indexed by i. The location of the repeated value is incremented hence the 2ⁿ locations of the memory also function as counters. The counters chosen by hash units will be incremented. After calculating final result for phase 1, the ‘m’ independent hash feature for phase 2 has been determined. The individual features will act as an independent hash feature i.e. m. This process is repeated for all the class of heart beat. Due to the time-varying morphology of the signal subject to physiological conditions there is a variation in QRS waveform (duration and amplitude), hence the values of the features of different class. Once the hash feature has been found for phase 2, then for the respective hash feature of the entire class of waveform for less than one minute, the values were determined. This value was used to index into array i. The resultant value acts as a memory address ‘n’ for the array i. Therefore when hit location is incremented, the array locations also function as a counter.

Counter index in the respective memory elements is actually the hash result of the ECG features (‘‘H-QR”, ‘‘H-RS”, ‘‘Slope-R”, ‘‘Slope-RS” and ‘‘Ratio-RR”) which also indicate to the location of memory. This is a data for classifying the ECG features. Each location of memory is also a counter; i.e., whenever a hashed value of ECG feature is generated, the data of that position is incremented by one. The profile curve for the respective feature (results from the respective memory element) has to be plotted. The counter content x distribution will be a normal (bell-shaped curve) or abnormal (not bellshaped curve). The features which result in the bell-shaped will be selected as a qualitative feature for discriminating the heartbeat of that particular class. We paired those features which result in the bell-shape. Now onward these paired features will act as a signature of phase 2, for classifying the waveform of particular class. Similarly the waveform of different class of heart beats or group of different class of heart beat from the MIT-BIH Arrhythmia are taken for determining the qualitative features of respective class as discussed above, so that the system can be well trained for that particular heartbeat class. We tuned our system for classifying the waveform of ten arrhythmia classes of NORM, LBBB, RBBB, VPC, APC, NORM-APC, LBBB-VPC and RBBB-APC etc. the waveform of ten arrhythmia classes of NORM, LBBB, RBBB, VPC, APC, NORM-APC, LBBB-VPC and RBBBAPC etc.

Profiling approach using joint and disjoint

The process of qualitative features selection (QFS) can be done after determining the statistical features of ECG. Let R_i,j indicates value range of the i^th complex feature for the j^th beat case. The sub-index i is defined as the same as that of F_i. The sub-index j=1, 2, 3, 4, 5 denotes the case of ‘‘normal”, ‘‘lbbb”, ‘‘rbbb”, ‘‘vpc” and ‘‘apc”, respectively.

The following steps are followed to obtain QFS:

Step 1: Defining the variables for feature and heartbeat case:x

Let k=Heartbeat case variable for comparing various heartbeats where k ≠ j. R_i,j=It is the value of feature which ranges from i^th ECG complex feature for j^th beat case. R_i,k=It is the feature valve range of j^th PQRST complex feature for k^th heartbeat case (Tables 1 and 2).

Table 1. PQRST complex feature.

Table 2. Heartbeat case.

i=PQRST complex feature and 1≤ i ≤ 9.

j, k=heartbeat case j ≠ k 1 ≤ j ≤ 5 , 1 ≤ k ≤ 5

Step 2: Comparison between 2 heartbeat cases:

Two heartbeat cases are compared to find out if any particular feature can discriminate two heartbeat cases or not.

If R=R_ij ∩ R_ik, Then,

Case-1: R_ij ∩ R_ik =1, R_i,k and R_i,j are the features value and if they do not overlap. Two heartbeat cases (j and k) will not coincide. Hence, it can be concluded that the feature ‘i’ can discriminate heartbeat cases j and k.

Case-2: R_ij ∩ R_ik =0, The heartbeats case-k and case-j cannot be discriminated and Fi is not obtained if Ri,k and Ri,j overlap . Two heartbeat cases (j and k) will coincide.

Step 3: Features that can discriminate two heartbeat cases have been founded:

Let F_i = feature that can discriminate j and k heartbeat cases and NFi=Total no. of features that can discriminate j and k heartbeat cases.

Step 4: Arrange NF_i, i=1, 2, . . . , 9, in the descending order values and then highest value index will be selected, that is, i=argument (maximum{NFi}, i=1,2,3,…,9)

Step 5: F_i qualitative feature can be obtained

Step 6: End. QRS-duration, QTP-interval, Ratio-RR and Area- RST as qualitative features were selected after running the above algorithm as shown in Figure 3. Each heartbeat case had its own range of values for each qualitative feature.

Figure 3: The simulated output result of joint/disjoint approach in form of matrix.

Let us assume a, b, c and d as QRS-dur., QTP-int, Ratio-RR and Area-R’ST’ respectively. The complete set of heartbeat cases from the matrix is represented by 1, 2, 3...9, 10 and qualitative features are represented by a, b, c and d and it can be written in the form of set as: aUbUcUd ={1,2,3,4,5,6,7,8,9,10}. This represents the complete set which is formed by the intersection of all the four qualitative features which contains ten different heartbeat cases combination.

a ε [1,2]

This represents that the qualitative feature ‘a’ forms a set which comprises of heartbeat cases combination 1, 2.

b ε [1,2,3,4,5]

This represents that the qualitative feature ‘b’ forms a set which comprises of heartbeat cases combination 1, 2,3,4,5.

c ε [2,4,6,7,8,9]

This represents that the qualitative feature ‘c’ forms a set which comprises of heartbeat cases combination 2, 4 and 6,7,8,9.

d ε [3,10]

This represents that the qualitative feature ‘d’ forms a set which comprises of heartbeat cases combination 3, 10.

Simulation Results

We have applied our qualitative features selection techniques on the record of arrhythmia database [3]. NORM, LBBB, RBBB, VPC and APC are abbreviation used for each heart ‘‘beat”, which contain different arrhythmia in the signal at different time instance. This simulation result has taken three data of the NORM case: Tape #222 (2274 NORM beats), #223 (2230 NORM beats) and #234 (2700 NORM beats). The abnormal heart ECG signals, records are: (1) two records of the left bundle branch block (LBBB) case (Tape #111 (2123 LBBB beats) and #214 (2002 LBBB beats)); (2) two records of the right bundle branch block (RBBB) case (Tape #118 (2166 RBBB beats) and #231 (562 RBBB beats)); (3) three records of ventricular premature contractions (VPC) case (Tape #200 (826 VPC beats), #221 (396 VPC beats) and #233 (831 VPC beats)); and (4) two records of atrial premature contractions (APC) case (Tape #222 (209 APC beats) and #232 (1382 APC beats)).

Simulation result of cardiac profiling approach

The features which result in the bell-shaped will be selected as a qualitative feature for discriminating the heartbeat of that particular class as discuss in section IV (A). We paired those features which result in the bell-shape so that the system can be fine-tuned for that particular class. Thus we obtain the heart beat cases being discriminated by the different features (Table 3).

Table 3. Heart beat cases discriminated by the different features resulting in the bell-shape.

Simulation result of joint and disjoint approach

From Figure 3 pair of cases which was found in the respective qualitative features and can be written as:

aUbUcUd={12,13,14,15,23,24,25,34,35,45}, a ∩ b={12}, a ∩ c={14}, a ∩ d={13}, a ∩ b ∩ c={25}, 12 ? {a,b}, 13 ? {a,d}, 14 ? {a,c}, 15 ? {c}, 23 ? {d}, 24 ?{c}, 25 ? {a,b,c}, 34 ? {c}, 35 ? {c} and 45 ? {a}.

Thus we obtain the heart beat cases being discriminated by the different features (Table 4).

Table 4. Heart beat cases being discriminated by the different features.

Conclusion

We proposed a novel technique for extraction of qualitative features used for classification of ECG waveform. Unlike other training classification methods, we extracted qualitative features with different sample of arrhythmia types and also with samples of normal beats, so that our system can differentiate between arrhythmia of different types. The raw data used for qualitative features extraction system is large number of almost abnormal beats. Otherwise, if we trained our system with only normal beats, the system cannot verify the beats as abnormal; it is due to abnormal behaviour now become the normal. As ECG is a non-stationary signal i.e. morphology of ECG signal depends on physical conditions of person, it varies with time and it differs for person to person, therefore out of both the proposed approach profiling approach using counters is much more suitable for classification because it depends on packets of data stream for extraction of qualitative features as compared to joint/disjoint approach which depends on maximum and minimum value of individual features. Extracted qualitative features can able to differentiate different types of arrhythmia and can be used in classification system for classification of different types of arrhythmia.
