Biomedical Research

DOI: 10.4066/biomedicalresearch.29-18-335

Abstract

The occurrence of lumbar disc herniation is closely related to the mechanical state, and it is necessary to study the internal mechanical behavior of the intervertebral disc under different loading conditions. In this study, the unconfined experiments were conducted by applying an optimized Digital Image Correlation (DIC) technique, and the internal displacement was analysed for the intervertebral disc under axial compression with flexion position. It is found that the average axial displacement is compressive in posterior AF, and the axial displacement in the outer region is significantly lower than that in the inner region, while the axial displacement in the lower region is significantly lower than that in the upper region. It is noted that the average radial displacement is tensile in posterior AF, and the radial displacement in the inner region is significantly lower than that in the outer region, while the radial displacement in the upper region is significantly lower than that in the lower region.

Keywords

Intervertebral disc, Annulus fibrosus, Flexion, Internal displacement, Optimized DIC technique

Introduction

Lumbar disc herniation is the extrusion of the nucleus pulposus out of the rupture of the annulus fibrosus, and the bulging tissue squeezes the spinal nerves continuously, leading to low back pain [1,2]. The occurrence of lumbar disc herniation is closely related to the mechanical state, and it is necessary to study the internal mechanical behavior of the intervertebral disc under different loading conditions [3-7]. The combination of flexion and axial compression is common in daily activities, however, this kind of activities may cause the distortions to the annulus fibrosus and even the complete rupture of the posterior annulus fibrosus in acute cases [8-11]. Therefore, it is important to study the mechanics of the intervertebral disc in this damaging load condition.

The Intervertebral Disc (IVD) consists of the liquid Nucleus Pulposus (NP) surrounded by layers of the Annulus Fibrosus (AF) [12,13]. In the past decade, some scholars tested the stress and the strain in the intervertebral disc under load and analySed the interrelationship between the lumbar disc structure and its mechanical properties [14-18]. Recently, NT Hollingsworth et al. measured the surface strains of the posterior annulus in an intact bovine caudal segment during flexion and axial compression loading, and determined the stress state based on the measured strains [19]. Shan et al. investigated the mechanism of the disc failure in a complex posture incorporating of flexion and shear, and studied the influence of the loading rate on the disc failure [20]. O’Connell et al. noninvasively measured the internal deformations of the human discs under axial compression with flexion, neutral, and extension positions, then analysed the effect of degeneration on the lumbar intervertebral disc [21].

Our objective was to measure the displacement of the posterior annulus in the intervertebral disc under axial compression with flexion position. By applying the optimized Digital Image Correlation (DIC) technique, the displacement field was obtained by analyzing the continuous images captured by the camera. Simultaneously, the internal axial as well as radial displacement in four unique locations of the posterior annulus was quantitatively calculated: inner AF, outer AF, upper AF and lower AF.

Theoretical model

The intervertebral disc is a complex structure that transmits and distributes large loads on the spine while providing flexibility [22]. Figure 1a shows the force analysis of the intervertebral disc in the posture of forward flexion with a flexion angle of θ.

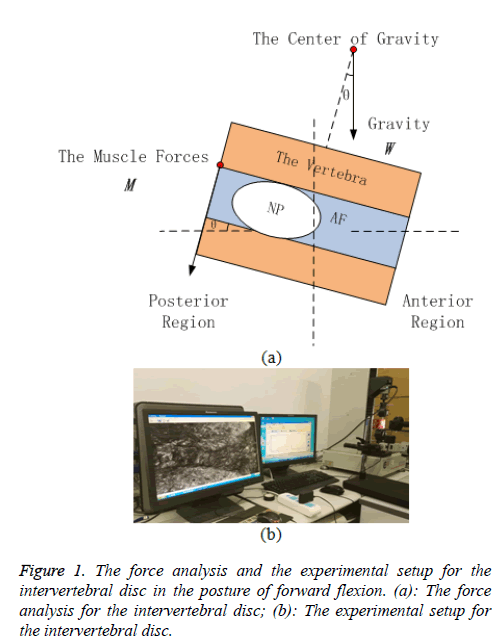

Figure 1: The force analysis and the experimental setup for the intervertebral disc in the posture of forward flexion. (a): The force analysis for the intervertebral disc; (b): The experimental setup for the intervertebral disc.

Four equilibrium functions can be obtained from Figure 1a:

Where θ is the anteflexion angle, C is the compressive force on the disc, S is the shear force on the disc; w is the gravity of the upper body, L_w is the arm of force for w; M is the muscle force of the straight spine muscle, L_m is the arm of force for M.

By solving the above four equations, the compressive force as well as the shear force on the intervertebral disc can be obtained:

The calculation results show that the flexion angle directly affects the force on the lumbar disc.

Experiments

Ten L3-L4 motion segments were obtained from the fresh porcine lumbar spines, and they were cut along the sagittal plane to be made into the intervertebral disc samples. The diameter as well as the height of intervertebral disc was measured to estimate the size of the intervertebral disc. A series of iron oxide nanoparticles were applied evenly to the annulus fibrosus in the sagittal plane of the samples, and they were used as the marked points to record the deformation of the intervertebral disc.

In this study, a MTF-100 loading device was applied to perform the compression test, and an optimized digital image correlation technique [23] was used to record the sequential images of the intervertebral disc samples under flexion as shown in Figure 1b. During the experiments, the samples were fixed by the fixtures with a flexion angle of 5º, then the samples were applied continuous compressive load with the loading rate of 1 mm/min until the final axial strain reached 30%. The displacement fields as well as the strain fields were calculated by the image processing software from the acquired images, and the load were measured by a force sensor in the loading device.

Results

The axial as well as radial displacement during static loading was performed in posterior AF to determine the magnitude and direction of AF bulging, as shown in Figure 2. The calculation results show that the average axial displacement is compressive, while the average radial strain is tensile in posterior AF.

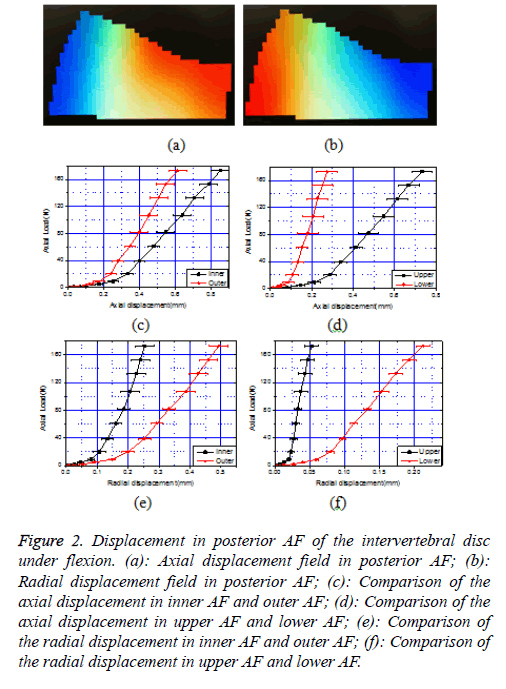

Figure 2: Displacement in posterior AF of the intervertebral disc under flexion. (a): Axial displacement field in posterior AF; (b): Radial displacement field in posterior AF; (c): Comparison of the axial displacement in inner AF and outer AF; (d): Comparison of the axial displacement in upper AF and lower AF; (e): Comparison of the radial displacement in inner AF and outer AF; (f): Comparison of the radial displacement in upper AF and lower AF.

Figures 2a and 2b show axial and radial displacement field in posterior AF at a fix time. From Figure 2a, it can be seen that the compressive axial displacement of posterior AF is greater in the upper and inner regions than in the lower and outer regions. From Figure 2b, it can be seen that the tensile radial displacement of posterior AF is greater in the lower and outer regions than in the upper and inner regions.

Figures 2c and 2d show axial displacement-axial load curves in different regions of the posterior AF during static loading. It is found that the displacement-load curves are nonlinear, and the displacement increases gradually with the increase of load on the posterior AF. From Figure 2c, it can be seen that the axial displacement in the outer region is significantly lower than that in the inner region. From Figure 2d, it can be seen that the axial displacement in the lower region is significantly lower than that in the upper region. The axial displacement state is in good agreement with the axial displacement field quite well, as shown in Figure 2a.

Figures 2e and 2f show radial displacement-axial load curves in different regions of the posterior AF during static loading. It is found that the displacement-load curves are nonlinear, and the displacement increases gradually with the increase of load on the posterior AF. From Figure 2e, it can be seen that inner AF exhibits lower radial displacement than outer AF. From Figure 2f, it can be seen that upper AF exhibits lower radial displacement than lower AF. The radial displacement state is in good agreement with the radial displacement field quite well, as shown in Figure 2b.

Discussion

The displacement state of the posterior annulus in the intervertebral disc was analysed noninvasively using the optimized DIC technique, and it is found that there is a significant bulging phenomenon in the posterior annulus of the intervertebral disc under flexion.

The first finding is that the average axial displacement is compressive in posterior AF, and the axial displacement in the outer region is significantly lower than that in the inner region, while the axial displacement in the lower region is significantly lower than that in the upper region. This result is in good agreement with early research on the strain distribution in the intervertebral disc under compression load [24,25]. In addition, it should be noted that the difference in the displacement in different regions is even more significant under flexion than under compression. These findings may have physiological importance. As can be seen from Equation 5, the increase of axial pressure on the intervertebral disc under flexion leads to a significant reduction in the height as well as the across sectional area in the inner region of the posterior AF, resulting in the increase of NP pressurization. These factors may contribute to the initiation or propagation of radial tears in the inner region of the posterior AF, leading to lumber disc herniation.

The second finding is that the average radial displacement is tensile in posterior AF, and the radial displacement in the inner region is significantly lower than that in the outer region, while the radial displacement in the upper region is significantly lower than that in the lower region. As can be seen from Equation 6, the increase of radial shear force leads to the shift of the intervertebral disc in the horizontal plane, resulting in an exacerbation of lumbar disc herniation. In addition, the outward bulge in the outer AF may be caused by the shift of the nucleus pulposus under load condition. It is thought that radial tearing begins at the inner AF and progresses toward the external boundaries and the huge stretching in the outer AF may lead to the radial tears and the herniation [26,27].

Conclusions

The optimized digital image correlation technique was applied to measure the internal displacement of the intervertebral disc under axial compression with flexion position. Firstly, the results show that the average axial displacement is compressive in posterior AF, and the axial displacement in the outer region is significantly lower than that in the inner region, while the axial displacement in the lower region is significantly lower than that in the upper region. Secondly, it is found that the average radial displacement is tensile in posterior AF, and the radial displacement in the inner region is significantly lower than that in the outer region, while the radial displacement in the upper region is significantly lower than that in the lower region.

Acknowledgements

The project is partly supported by the National Natural Science Foundation of China (No. 11672208, 11432016 and 81741141) and the Natural Science Foundation of Tianjin City (No. 17JCQNJC14200).
